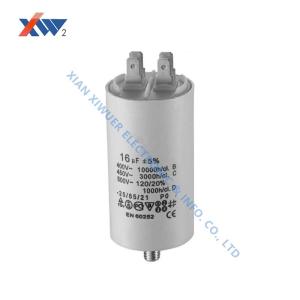

High Quality 450V 16 uF CBB60 AC Sealed Metallized Polypropylene Film Capacitor
Features
Application
- Widely used in washing machines, refrigerators, water pump, lamps and other single-phase motors with a frequency of 50Hz/60Hz AC power supply power are relatively small to start and run, used in AC power systems, assembling power factor automatic compensation cabinets, on-site Compensation device and UPS power supply, etc.
- It is suitable for places with high safety requirements, such as underground coal mines, railways, aerospace, etc.
Technical Parameters
- Executive Standard: GB/T3667-2005
- Climate Category: 40/70/21 or40/85/21
- Capacitance Tolerance: ±5%
- Insulated Resistance: ≥3000S(MΩ·µF)
- Dissipation Factor Tan: tgδ≤0.002(50Hz～100Hz)
Requirements for use
- Elevation: ≤2000m
- Residual voltage when put in: no more than 10% of rated voltage
- Maximum allowable voltage: no more than 1.1 times the rated voltage
- Maximum allowable current: no more than 1.3 times rated current
| Rated Voltage (VAC) | Nominal Capacitance(μF) | Dimension(mm) |
| Diameter(D) | Height(H) |
| 450V | 4μF | φ 26,35 | 52,68 |
| 5μF | φ 26,35 | 52,68 |
| 8μF | φ 35,42 | 55,80 |
| 10μF | φ 35,42 | 68,80 |
| 20μF | φ 42,50 | 80,100 |
| 25μF | φ 42,50 | 80,100 |
| 30μF | φ 42,50 | 90,100 |
| 45μF | φ 50 | 100,105 |
| 50μF | φ 50 | 100,105 |
| 60μF | φ 50 | 100,107 |
Note:
1. Other capacity and size series can be negotiated according to the needs of users.
2. The form of leading-out terminal can be made according to the requirements of user agreement.
